Our Work

Before & after transformations.

Every photo below is a real job finished by our own crew in Hanamkonda, Warangal and Kazipet. Drag the slider on any project to see exactly what changed.

6+
Documented case studies
7+
Years on site
3
Cities served

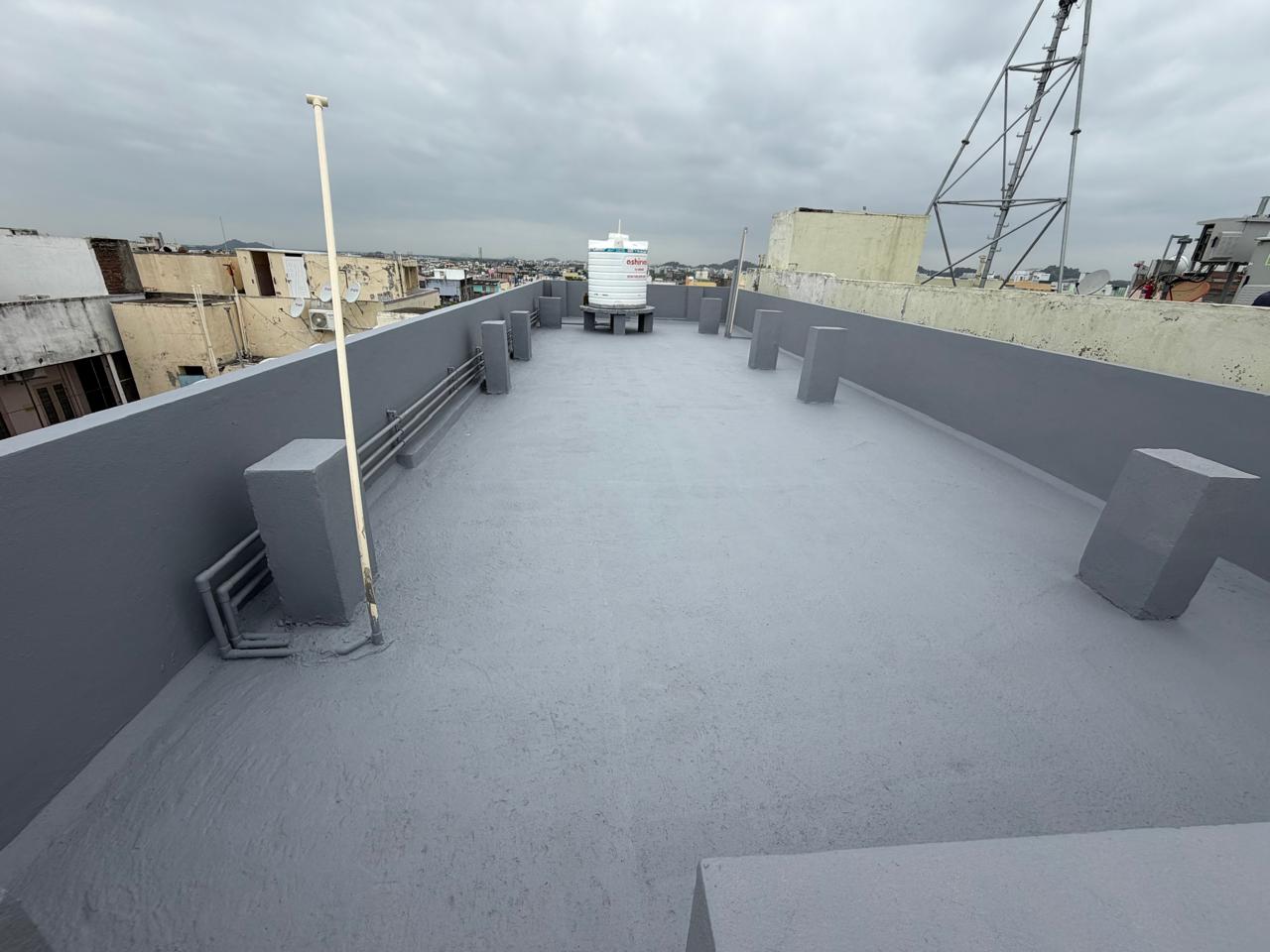

Same terrace after grey elastomeric waterproof coating with sealed parapet walls

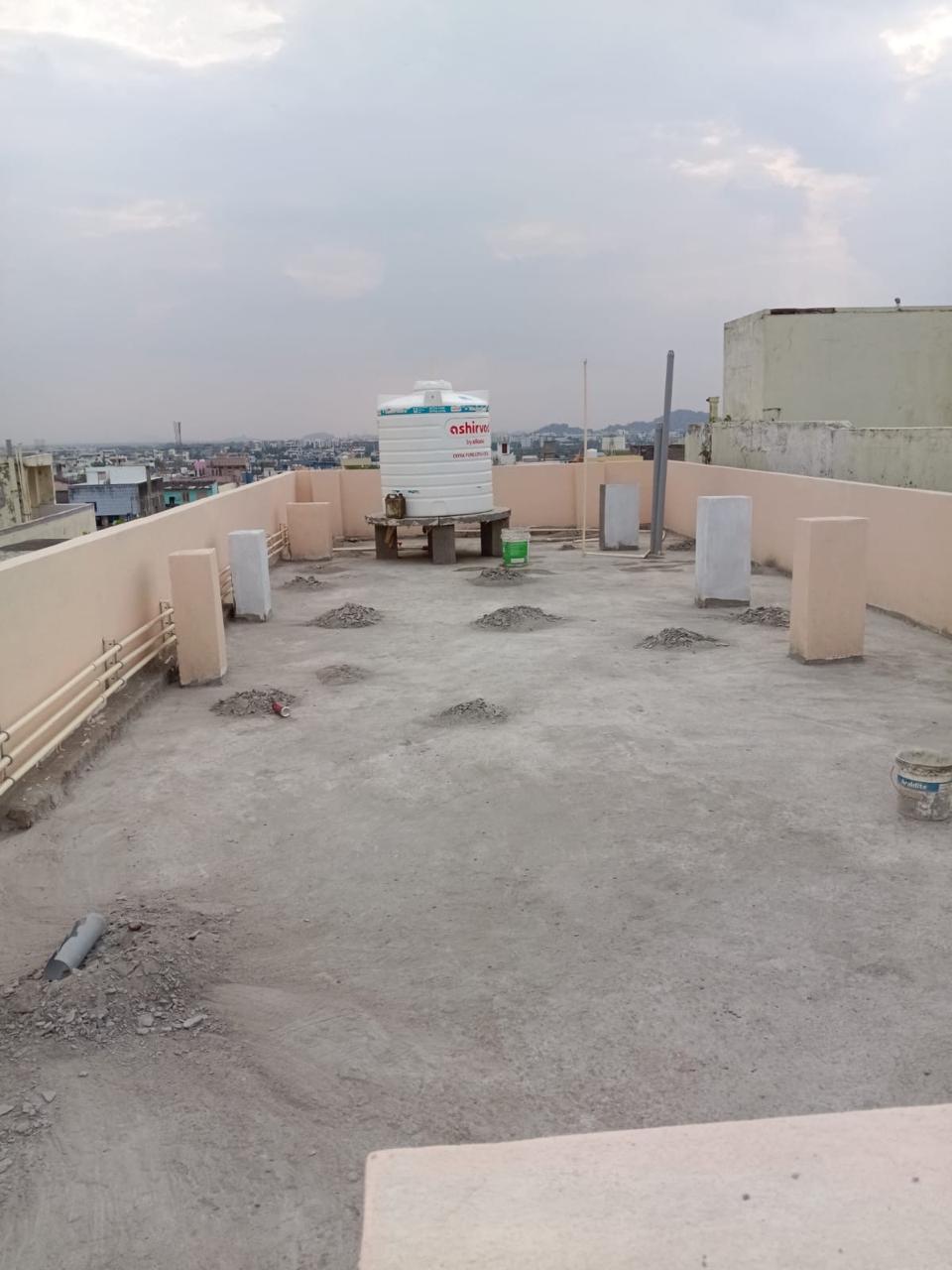

Bare cracked cement terrace with debris before waterproofing in Hanamkonda
BeforeAfter
ResidentialTerraceRoof

Terrace Waterproofing — Independent House

Hanamkonda, Warangal

Problem
Bare cement terrace with cracked screed, ponding water near the tank base and seepage showing on the ceiling of the room below during monsoon.
Solution
Surface cleaning and crack filling, slope correction around the tank platform, coving at all parapet junctions, then two coats of elastomeric waterproof coating carried up the parapet walls and over the pillars.
Completed · Under workmanship warranty

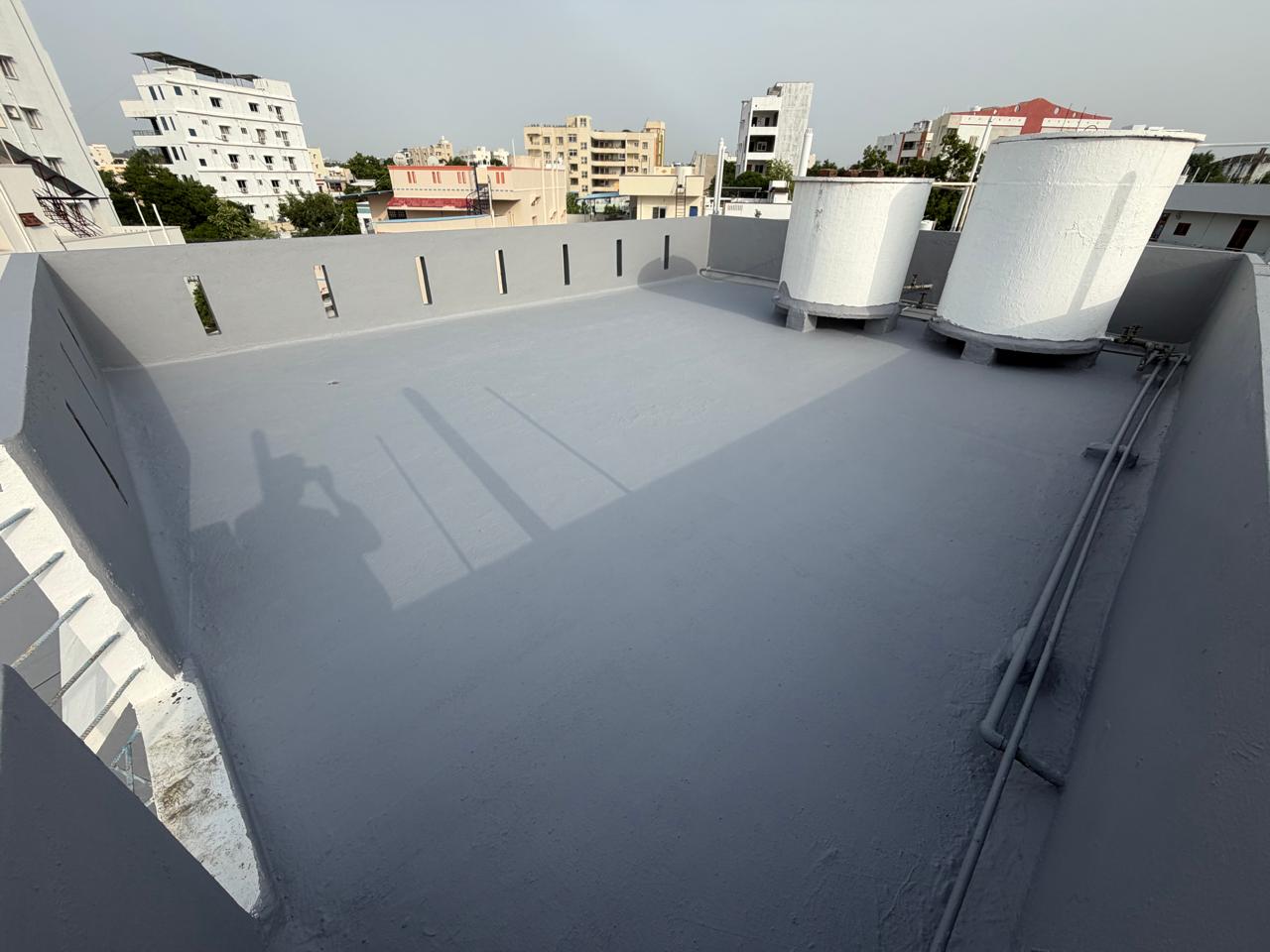

Same terrace fully coated in smooth grey elastomeric waterproofing including parapets

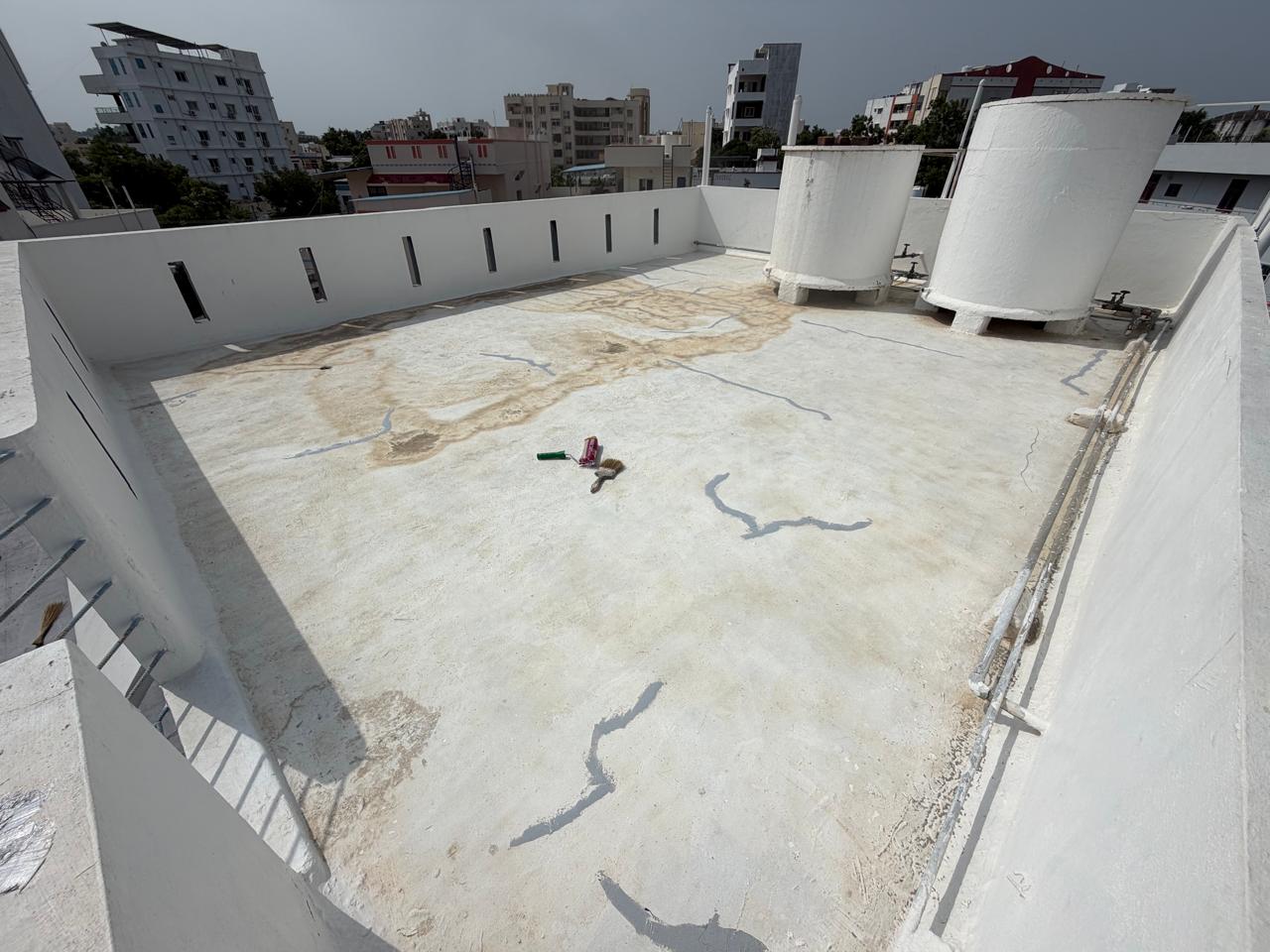

Weathered white terrace with sealed cracks and water stains before recoating in Warangal
BeforeAfter
ResidentialTerraceRoof

Cracked Terrace Sealing & Full Recoat

Warangal

Problem
Weathered white terrace with a network of shrinkage cracks, water staining around the tank bases and a chalky old coating that had stopped shedding water.
Solution
All cracks V-cut and sealed with polymer-modified slurry, surface primed, coving formed at wall junctions, then a full grey elastomeric membrane applied over the floor, parapets and tank plinths.
Completed · Under workmanship warranty

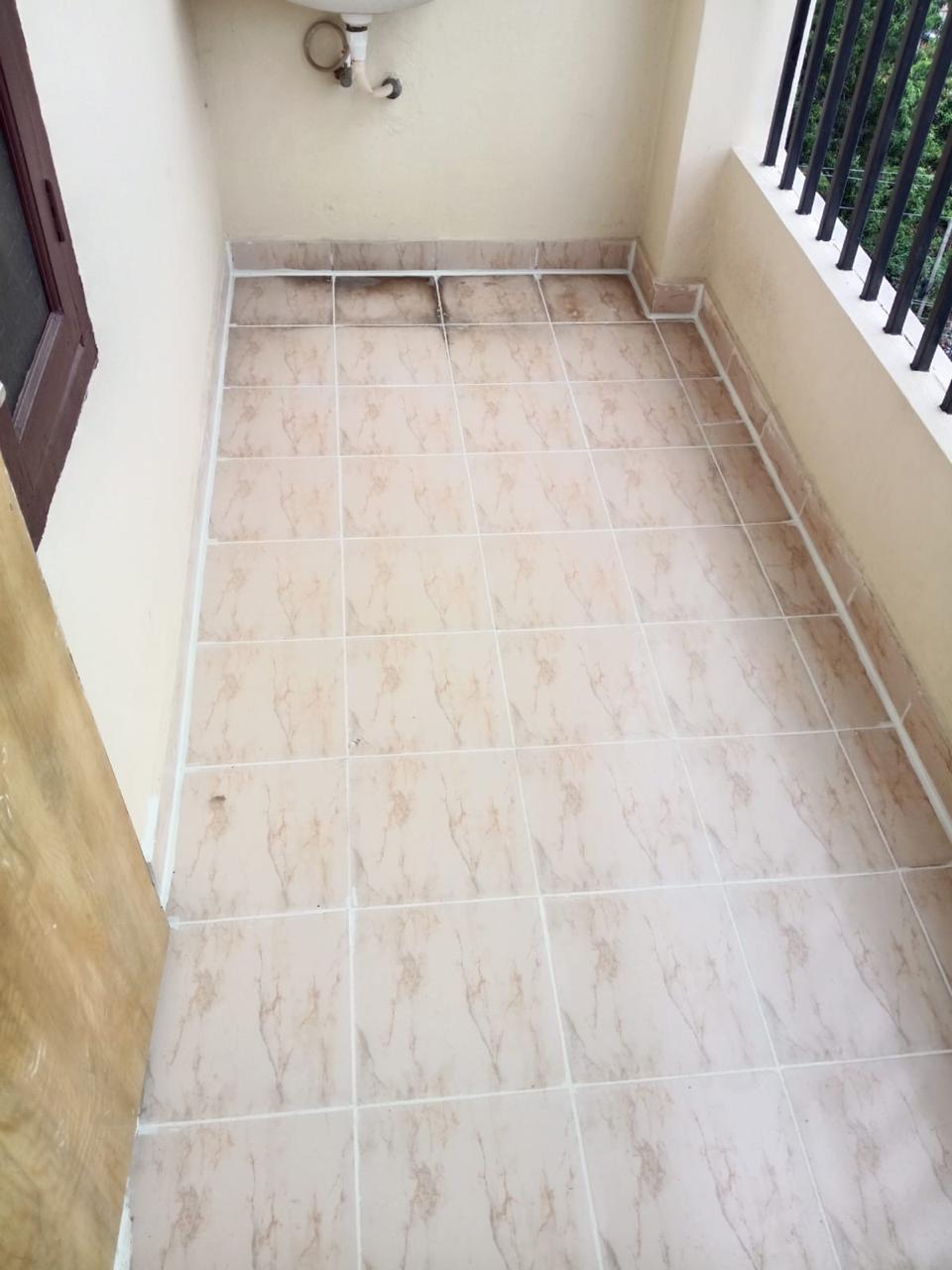

Same balcony after grout sealing with clean white waterproof joints

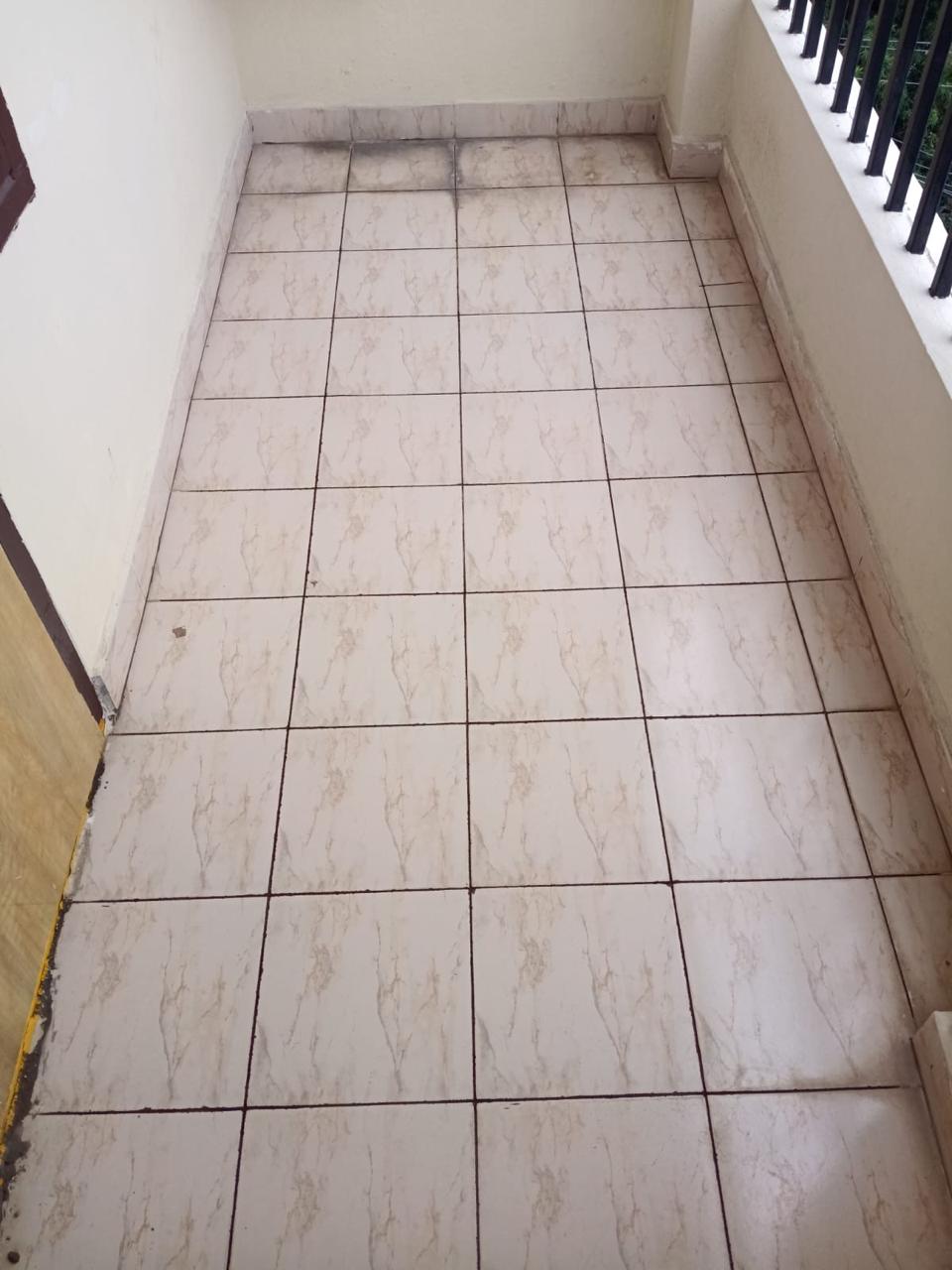

Balcony tiles with dark stained grout lines before waterproofing in Warangal
BeforeAfter
ResidentialBalcony

Balcony Floor Waterproofing & Grout Sealing

Warangal

Problem
Tiled balcony with dark, eroded grout lines holding water after every rain, with damp staining creeping down the wall of the room below.
Solution
Old grout raked out and cleaned, tile joints re-filled with polymer waterproof grout, junctions at the wall and drain sealed, then the floor treated with a clear penetrating sealer.
Completed · Under workmanship warranty
Finished terrace surface after waterproofing coating
Interior wall with damp seepage stains before waterproofing treatment
BeforeAfter
ResidentialTerrace

Terrace Leak Repair & Recoating

Warangal

Problem
Damp patches and peeling paint on the internal ceiling caused by an old failed terrace coating.
Solution
Removed the loose old membrane, treated the cracks with polymer slurry and applied a fresh two-coat waterproofing system.
Completed
Completed balcony floor after waterproofing treatment
Bathroom floor being prepared for waterproofing membrane
BeforeAfter
ResidentialBathroom

Bathroom & Balcony Waterproofing

Kazipet

Problem
Water tracking from the sunken bathroom slab into the adjoining bedroom wall, leaving a permanent damp line.
Solution
Sunken portion cleaned and treated with cementitious waterproof coating, joints sealed and a 24-hour ponding test done before tiling.
Completed
Exterior wall after protective waterproof coating
Basement wall being coated with bituminous waterproofing
BeforeAfter
CommercialBasementWall

Basement & External Wall Treatment

Hanamkonda

Problem
Ground-water pressure pushing moisture through the basement wall, damaging stored goods and plaster.
Solution
Negative-side crystalline treatment on the internal face plus a bituminous coating and external wall sealing to stop further ingress.
Completed
Why customers trust our work

Proof first, promises second.

We document every stage of the job so you can see the preparation that sits under the finished coat — not just the shiny final photo.

Real Project Photos

Every image on this page is from a job our own crew completed — no stock photography.

Experienced Team

7+ years of terrace, bathroom and basement work across Warangal district.

Quality Materials

Branded, tested chemicals and membranes — we show you the packs before we start.

Long-lasting Results

Correct slope, coving and curing so the coating survives many monsoons, not one.

Professional Workmanship

Clean site, daily updates, and a written workmanship warranty on handover.
